K40/K42 Solid Carbide Gear Hob Cutter for Oil-Cooling Cutting
2023-04-30 09:30:46
jiangxingTools
1639

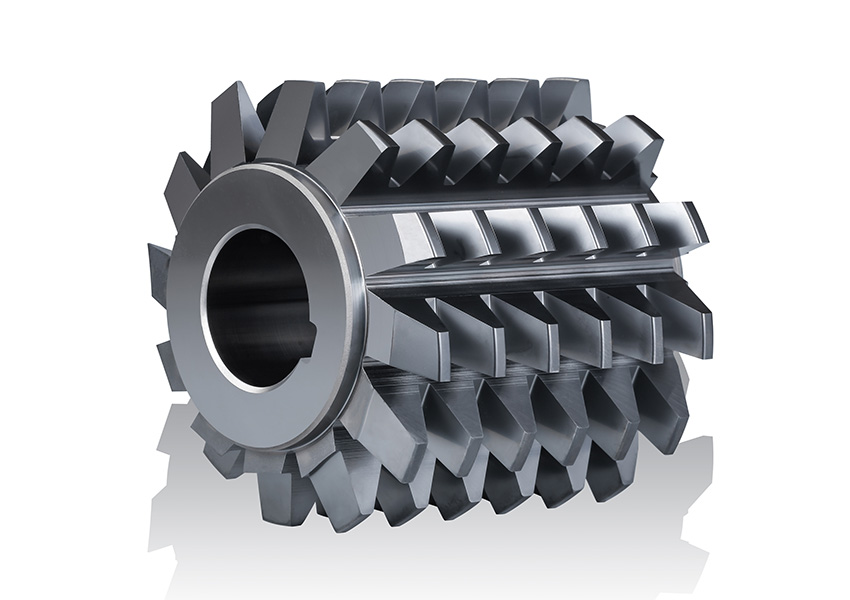

K40/K42 Solid Carbide Gear Hob Cutter for Oil-Cooling Cutting
base material: K40, K42, cold heading die-casting tungsten cobalt alloy
bore type solid carbide hob cutter with BALINT ALCRONA PRO coating
solid carbide hobs for high speed gear hobbing, large size optimal seclection
recommended linear speed 150m/min-200m/min
recommended hob feed 0.5-0.8mm/r
oil cooling cutting environment
recommended hardness of processed material ≤HRC40°
accuracy class DIN AA, AAA
solid carbide gear hobs with bore 8mm, 10mm,13mm, 16mm, 22mm, 27mm, 32mm and 40mm
tooth profile is standard DIN3972, topping or non-topping
