Disk Type Shaper Cutters with GB 6081
2023-04-12 13:31:25
jiangxingTools
1987

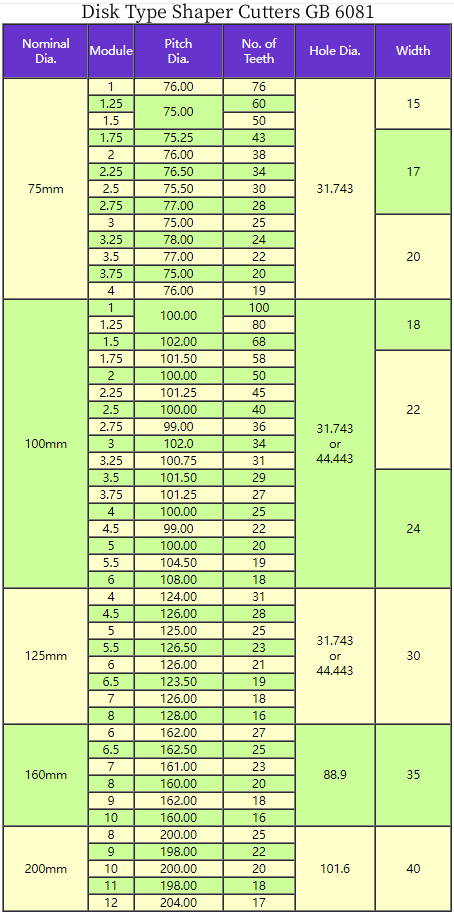

Disk Type Shaper Cutters with GB 6081
these shaper cutters are 20° PA, non-topping finishing cutters for spur gears.
tooth profile can be made according to GB 6082, DIN 1829, JIS B 4356 and BS 5246.
Module m1-m12, diametral pitch: Dp2-1/4-4
Gear shaping tools can be supplied with bore 31.743mm, 44.443mm, 88.9mm, and 101.6mm.
HSS material of gear shaper cutters are M2, M2E, M35, M42, ASP2052, S390 and carbide.
