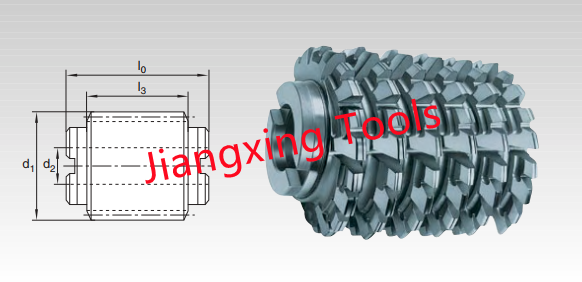

Heavy duty roughing hobs
(roughing type hobs)
for spur and helical gears to module pitch
20° pressure angle
basic profile III to DIN 3972
with positive rake (undercut)
optionally with chip grooves
single start right-handed
with keyway
For gear hobbing machines with max. capacity = 290 mm dia. and for max.cutter lenght = 330 mm.
