Gear Milling Cutters for Spur Gears
2021-11-02 13:15:36
jiangxingTools
2802
Gear Milling Cutters for Spur Gears
Module pitch
20° pressure angle
basic profile Ⅰto DIN 3972

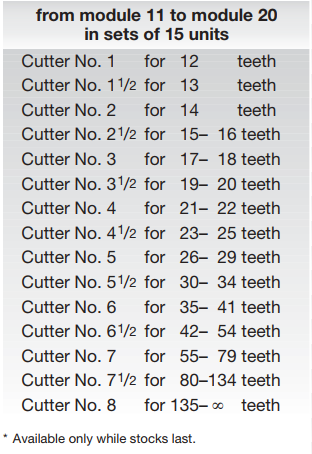

Involute gear cutters are supplied in complete sets as well as singly. When ordering single gear cutters, the cutter number or the number of teeth to be cut must be specified.
We also manufacture Involute gear cutters with other pressure angles or to CP. Involute gear cutters for cutting spur gears with less than 12 teeth.
